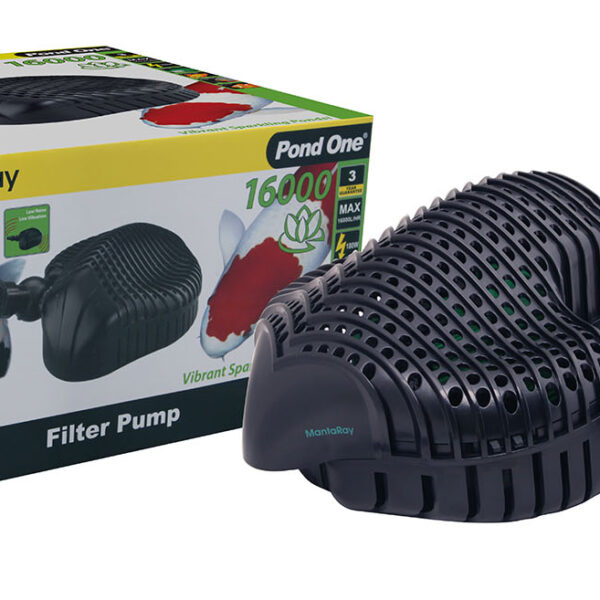

Pond One MantaRay 16000 Filter Pump 16000LH 6.5mh H 10m Cable

Product Description

The Pond One MantaRay 16000 Filter Pump is a high-capacity pond pump designed to deliver powerful water circulation for large garden ponds, koi ponds, filtration systems and waterfalls. With a maximum flow rate of 16,000 litres per hour and a maximum head height of 6.5 metres, it provides substantial water movement for demanding pond installations.

Featuring frequency inversion technology, the MantaRay 16000 is designed to optimise pump performance under different operating conditions. Its multi-directional ball-joint outlet allows flexible hose positioning, while the protective strainer housing helps reduce blockages caused by leaves and larger debris.

The pump features a solid-particle-handling impeller and a removable impeller housing for convenient cleaning. Its replaceable rotor and impeller assembly supports long-term maintenance, while built-in dry-run and overload protection help minimise the risk of damage under certain abnormal operating conditions.

Supplied with a 10-metre power cable, the Pond One MantaRay 16000 is an excellent choice for large ponds requiring high-volume water circulation through compatible filtration systems, waterfalls and water features.

Key Features and Benefits

• High-Volume Water Flow: Delivers up to 16,000L/hr for demanding pond applications.
• Maximum Head Height: Pumps water to a maximum rated height of 6.5 metres.
• Energy-Efficient Technology: Frequency inversion technology helps optimise performance under varying operating conditions.
• 180W Power Consumption: Designed to provide substantial water flow for large pond systems.
• 10-Metre Power Cable: Offers flexibility when positioning the pump.
• Multi-Directional Outlet: Allows flexible hose positioning to suit different installations.
• Ball-Joint Outlet Design: Helps minimise flow resistance.
• Protective Strainer Housing: Helps prevent larger debris from entering the pump.
• Raised Leaf Guards: Reduce the likelihood of leaves blocking the water intake.
• Easy-Clean Construction: The strainer and impeller housing can be removed for maintenance.
• Replaceable Impeller Assembly: Supports servicing and extends the useful life of the pump.
• Built-In Protection: Includes dry-run and overload protection features.
• Low-Noise Operation: Designed to minimise vibration and operating noise.
• Freshwater and Marine Compatible: Suitable for compatible freshwater and marine applications.

Technical Specifications

Maximum flow and head are rated limits, not simultaneous operating values. Actual flow depends on pumping height, hose diameter, pipe length, bends and filter resistance.

Dimensions and Weight

Approximate product dimensions and weight:

• Length: 320mm
• Width: 450mm, including the vertically positioned outlet
• Height: 200mm
• Packaged Dimensions: Approximately 400 × 400 × 280mm
• Packaged Weight: Approximately 7kg
• Power Cable Length: 10 metres

Allow adequate room for hose connections, installation and maintenance access.

How to Use the Pond One MantaRay 16000

1. Choose the Installation Location

Position the pump close to the pond filtration system or water feature. The pump is designed primarily for submerged operation, or for inline use when correctly configured according to the manufacturer’s instructions.

2. Position the Pump

Place the pump securely in the pond where water can enter the intake freely. Avoid areas with excessive sludge or accumulated debris.

3. Connect the Outlet Hose

Attach a compatible hose to the pump’s multi-directional outlet. Use an appropriate hose diameter to minimise flow restriction and maximise performance.

4. Connect the Filter or Waterfall

Route the hose to the pond filter, waterfall or other compatible equipment. Ensure the connected equipment can accommodate the pump’s flow rate.

5. Check the Installation

Inspect hoses and fittings for leaks, kinks and blockages. Confirm that all connections are secure before powering the pump.

6. Connect the Power

Connect the pump to a suitable, correctly protected power supply. Outdoor electrical connections must be protected from moisture and installed in accordance with local electrical safety requirements.

7. Monitor Water Flow

Check that water is circulating correctly through the system. If the flow is reduced, inspect the intake strainer, hoses and filter for blockages or excessive restrictions.

Important: The pump must not be operated out of water unless installed inline in a correctly configured filtration system, as permitted by the manufacturer.

Maintenance and Care

Regular maintenance helps maintain efficient performance and prolong the life of your pump.

• Clean the intake strainer: Remove leaves and debris that may restrict water flow.
• Inspect the impeller: Disconnect the power before opening the impeller housing.
• Check hoses and fittings: Look for leaks, kinks and blockages.
• Monitor performance: Investigate unusual noise, vibration or reduced flow.
• Inspect the power cable: Do not use the pump if the cable or plug is damaged.
• Replace worn components: Use compatible replacement parts, including impeller set 25241i where applicable.
• Follow the instruction manual: Clean and reassemble the pump according to the manufacturer’s recommendations.

Always disconnect the power before removing the pump from the water or carrying out maintenance.

What’s Included?

• 1 × Pond One MantaRay 16000 Filter Pump
• Attached 10-metre power cable
• Pump strainer housing and outlet assembly

Hoses, hose clamps, filters and other installation accessories may need to be purchased separately. Check the package contents before installation.

Frequently Asked Questions

What is the maximum flow rate?

The MantaRay 16000 delivers up to 16,000 litres per hour, equivalent to approximately 266.7 litres per minute.

How high can it pump water?

Its maximum rated head height is 6.5 metres. Actual flow decreases as the pumping height and plumbing resistance increase.

Can it run a pond filter?

Yes. It is designed to supply water to compatible pond filtration systems. Ensure the filter and connecting hoses can accommodate the pump’s output.

Can it power a waterfall?

Yes. It can supply water to compatible waterfalls and cascades. The achievable flow depends on waterfall height, hose diameter, pipe length and bends.

Is it suitable for koi ponds?

It can be used for compatible koi pond filtration and circulation systems. Choose the pump according to pond volume, fish stocking, filter requirements and desired water turnover.

How much electricity does it use?

At its rated 180W consumption, continuous operation uses approximately 4.32kWh per day or 129.6kWh over 30 days.

Is it suitable for saltwater?

The manufacturer lists the MantaRay range as suitable for freshwater and marine applications. Confirm compatibility with your specific installation and connected equipment.

Ideal For

The Pond One MantaRay 16000 Filter Pump is ideal for large garden ponds, koi ponds, high-flow filtration systems, waterfalls and water features that require powerful, reliable water circulation.
