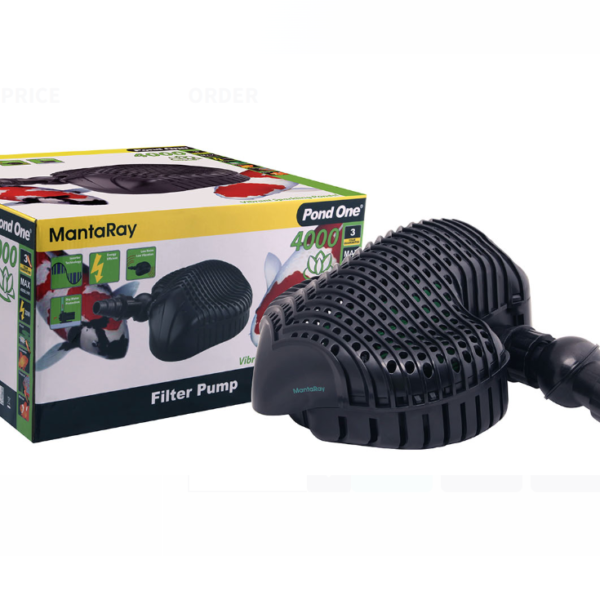

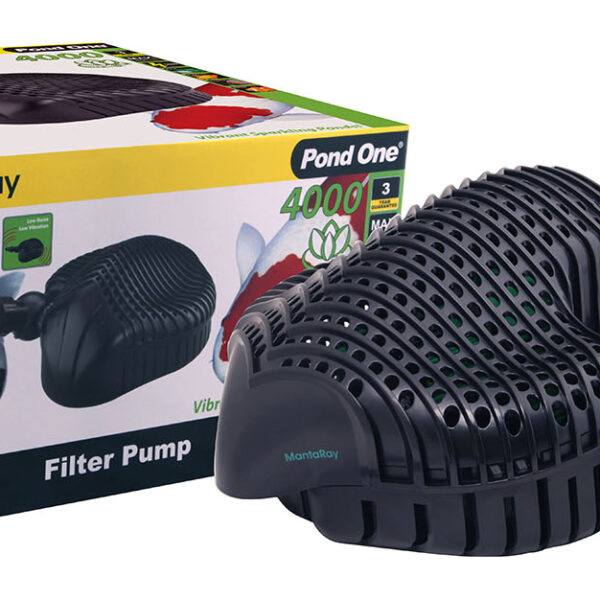

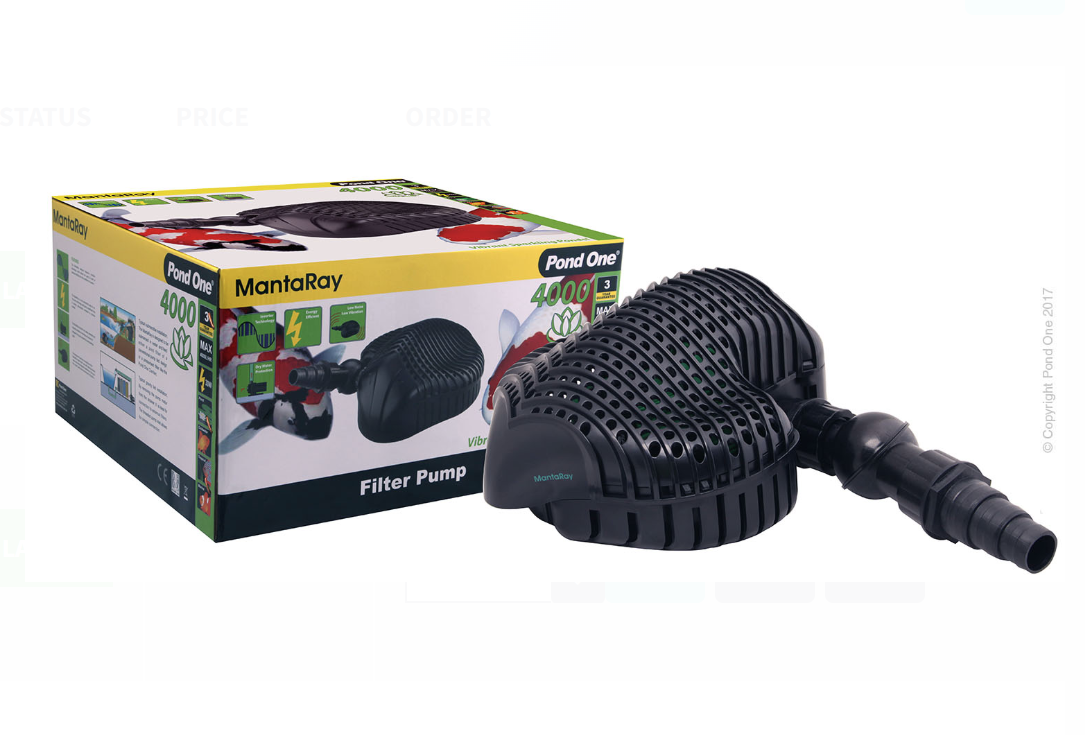

Pond One MantaRay 4000 Filter Pump 4000LH 3.2mh H 10m Cable

Product Description

The Pond One MantaRay 4000 Filter Pump is a powerful and energy-efficient pond pump designed to deliver reliable water circulation for garden ponds, ornamental water features and compatible filtration systems. With a maximum flow rate of 4,000 litres per hour and a maximum head height of 3.2 metres, it provides dependable water movement for maintaining a healthy and attractive pond environment.

Designed for ease of use and maintenance, the MantaRay 4000 features an enclosed strainer housing that helps protect the pump from larger debris. Its leaf-guard design helps reduce blockages, while the removable impeller housing makes routine cleaning and maintenance straightforward.

The pump features an efficient motor, a multi-directional outlet and a long 10-metre cable for flexible positioning. It can be used in freshwater and marine applications, making it a versatile choice for suitable pond and aquarium systems.

Whether you’re circulating water through a pond filter, creating a waterfall or operating a decorative water feature, the Pond One MantaRay 4000 offers reliable performance for everyday water circulation.

Key Features and Benefits

• High Water Flow: Pumps up to 4,000 litres per hour for effective pond circulation.
• Maximum Head Height: Lifts water up to 3.2 metres under suitable operating conditions.
• Energy Efficient: Uses just 30W of power.
• 10-Metre Power Cable: Provides flexibility when positioning the pump.
• Multi-Directional Outlet: Allows flexible hose positioning to suit different installations.
• Protective Strainer Housing: Helps prevent larger debris from entering the pump.
• Leaf-Guard Design: Helps reduce blockages and maintain water intake.
• Easy Maintenance: Removable impeller housing allows convenient cleaning.
• Replaceable Impeller Assembly: Supports servicing and extends the useful life of the pump.
• Low-Noise Operation: Designed to minimise vibration and operating noise.
• Freshwater and Marine Compatible: Suitable for compatible freshwater and saltwater applications.

Technical Specifications

Please note: The 4,000L/hr figure is the maximum rated flow. Actual flow decreases as pumping height increases and is also affected by hose diameter, pipe length, bends, filters and other restrictions.

Dimensions

Approximate pump strainer housing dimensions supplied by a retailer:

• Width: Approximately 450mm, including the vertically positioned outlet
• Length: Approximately 320mm
• Height: Approximately 200mm

These are approximate housing dimensions. Please confirm the measurements with the supplier before planning a fitted installation.

How to Use the Pond One MantaRay 4000

1. Choose the Installation Method

The pump is designed primarily for submersible use. It may also be installed inline when configured with a compatible filtration system according to the manufacturer’s instructions.

2. Position the Pump

For submersible operation, place the pump in the pond in a suitable position with adequate water access. Avoid placing it directly in accumulated sludge or debris.

3. Connect the Outlet Hose

Attach a compatible hose to the pump outlet. Ensure the connection is secure and use a suitable hose diameter to minimise flow restriction.

4. Connect the Filtration System

Route the hose to the pond filter, waterfall or water feature. Check that the installation can handle the pump’s flow rate and that all connections are secure.

5. Check the Installation

Ensure the pump is correctly positioned and submerged for normal operation. Do not operate it dry unless it is installed in a properly configured inline arrangement permitted by the manufacturer.

6. Connect the Power

Connect the pump to a suitable, correctly protected power supply. Keep plugs and electrical connections protected from water and moisture, and follow local electrical safety requirements for outdoor pond equipment.

7. Monitor Water Flow

Check that water is circulating properly through the connected system. If flow is weak, inspect the intake strainer, hoses and filter for blockages or restrictions.

Maintenance and Cleaning

Regular maintenance helps maintain efficient water flow and prolong the life of your pump.

• Clean the strainer: Remove leaves and debris that may restrict water intake.
• Inspect the impeller: Disconnect the power before opening the impeller housing for cleaning.
• Check hoses: Look for kinks, blockages, leaks and damaged connections.
• Monitor performance: Investigate unusual noise, vibration or reduced flow.
• Inspect the cable: Do not use the pump if the electrical cable or plug is damaged.
• Use suitable replacement parts: The replacement impeller set for the MantaRay 4000 is listed as part 25239i.

Always disconnect the pump from the power supply before removing it from the water or carrying out maintenance. Follow the manufacturer’s instructions for cleaning and reassembly.

What’s Included?

• 1 × Pond One MantaRay 4000 Filter Pump
• Attached 10-metre power cable
• Pump strainer housing and outlet assembly

Hoses, hose clamps, filters and other installation accessories may need to be purchased separately. Check the product packaging for the exact included components.

Frequently Asked Questions

What is the maximum flow rate?

The pump has a maximum rated flow of 4,000 litres per hour, or approximately 66.7 litres per minute. Actual output depends on installation conditions.

How high can it pump water?

The maximum head height is 3.2 metres. This is the maximum rated lifting height, not the height at which the pump will maintain its full 4,000L/hr flow.

Can it run a pond filter?

Yes. It is designed to supply water to compatible pond filtration systems. Ensure the filter and connecting hoses can accommodate the pump’s flow rate.

Can it power a waterfall?

Yes. It can supply water to suitable waterfalls and cascades. The achievable flow depends on the waterfall height, hose dimensions and plumbing resistance.

Is it suitable for saltwater?

The manufacturer lists the MantaRay range as suitable for freshwater and marine applications. Confirm compatibility with your particular system and installation materials.

How much electricity does it use?

At its rated 30W power consumption, continuous operation uses approximately 0.72kWh per day or 21.6kWh over 30 days.

Is the pump easy to maintain?

Yes. The strainer housing and removable impeller assembly are designed to make routine cleaning and maintenance easier.

Ideal For

The Pond One MantaRay 4000 Filter Pump is ideal for garden ponds, ornamental water features, compatible pond filtration systems and small-to-medium waterfall installations that require reliable water circulation.
