Pond One MantaRay 6000 Filter Pump 6400LH 3.3mh H 10m Cable

  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $40

  • DHL Courier delivery

DHL courier will deliver to the specified address

1-2 Days

From $40

Original price was: $401.99.Current price is: $301.49.

Description

93008

Product Description

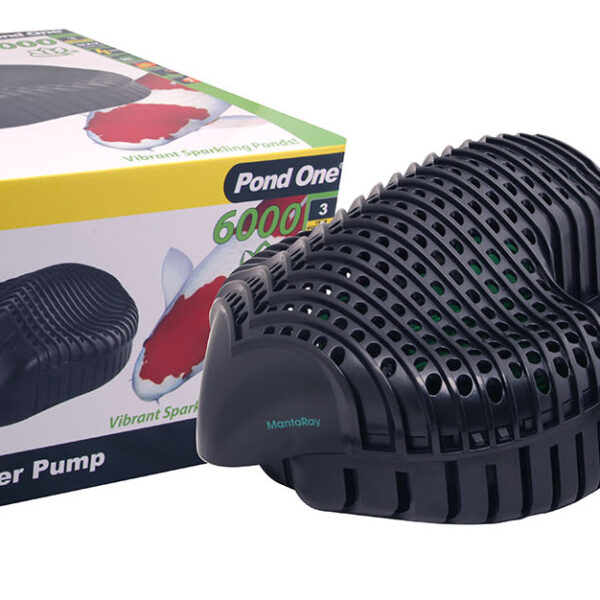

The Pond One MantaRay 6000 Filter Pump is a powerful, energy-efficient pond pump designed to provide reliable water circulation for garden ponds, koi ponds, filtration systems and waterfalls. With a maximum flow rate of 6,400 litres per hour and a maximum head height of 3.3 metres, it delivers high-volume water movement to help maintain a healthy and attractive pond environment.

Featuring advanced frequency inversion technology, the MantaRay 6000 adjusts its operation to suit working conditions, helping improve efficiency and reduce running costs. Its multi-directional outlet and specially designed ball-joint connection provide flexible hose positioning while helping minimise flow resistance.

The pump’s protective strainer housing features raised leaf guards to help reduce blockages caused by leaves and debris. The removable impeller housing makes routine cleaning straightforward, while the replaceable rotor and impeller assembly supports long-term maintenance.

Supplied with a 10-metre power cable, the Pond One MantaRay 6000 is a versatile choice for pond owners who need dependable circulation for filtration, waterfalls and compatible water features.

Key Features and Benefits

  • High Water Flow: Delivers up to 6,400L/hr for effective pond circulation.
  • Maximum Head Height: Pumps water to a maximum rated height of 3.3 metres.
  • Energy-Efficient Motor: Uses frequency inversion technology to optimise operation under varying conditions.
  • 50W Power Consumption: Provides high-volume circulation with relatively low power consumption.
  • 10-Metre Power Cable: Offers flexibility when positioning the pump.
  • Multi-Directional Outlet: Allows flexible hose connection to suit different installations.
  • Ball-Joint Outlet Design: Helps minimise frictional resistance and maintain water flow.
  • Protective Leaf Guards: Help prevent leaves from blocking the intake.
  • Easy-Clean Housing: Designed for convenient access during routine maintenance.
  • Replaceable Impeller Assembly: Supports servicing and extends the useful life of the pump.
  • Dry-Run and Overload Protection: Helps protect the pump under certain abnormal operating conditions.
  • Freshwater and Marine Compatible: Suitable for compatible freshwater and marine applications.

Technical Specifications

Specification Details
Brand Pond One
Model MantaRay 6000
Product Code 93008
Product Type Pond filter pump
Maximum Flow Rate 6,400L/hr
Maximum Flow per Minute Approximately 106.7L/min
Maximum Head Height 3.3 metres
Power Consumption 50W
Power Requirements 220–240V AC
Power Cable Length 10 metres
Outlet Design Multi-directional ball-joint outlet
Intake Protection Strainer housing with raised leaf guards
Replacement Impeller Part 25240i
Suitable Applications Pond filtration, waterfalls and water features
Water Compatibility Freshwater and marine

Dimensions

Exact physical dimensions and net weight have not been confirmed from the manufacturer’s specification sheet.

  • Length: Confirm with the supplier.
  • Width: Confirm with the supplier.
  • Height: Confirm with the supplier.
  • Power Cable Length: 10 metres.

Allow adequate space for installation, hose connections and maintenance access.

How to Use the Pond One MantaRay 6000

1. Select the Installation Location

Choose a suitable position close to the pond filtration system or water feature. The pump is designed primarily for submerged operation. It may also be used in a correctly configured inline installation according to the manufacturer’s instructions.

2. Position the Pump

For submerged operation, place the pump securely in the pond where water can flow freely through the intake. Avoid areas with excessive sludge or accumulated debris.

3. Connect the Outlet Hose

Attach a compatible hose to the pump’s multi-directional outlet. Use suitable hose fittings and avoid unnecessarily narrow tubing, sharp bends or long restrictive pipe runs.

4. Connect the Filter or Water Feature

Route the hose to the pond filter, waterfall or other compatible equipment. Ensure the connected equipment can accommodate the pump’s flow rate.

5. Check the Connections

Inspect the hose, fittings and intake for blockages or loose connections. Make sure the pump is installed according to the manufacturer’s instructions before switching it on.

6. Connect the Power

Connect the pump to a suitable, correctly protected power supply. Outdoor electrical connections must be protected from moisture and installed in accordance with local electrical safety requirements.

7. Check Water Flow

Once operating, confirm that water is circulating correctly. If the flow is reduced, inspect the intake, hoses and filter for blockages or excessive restrictions.

Important: Never operate the pump out of water unless it has been installed in a suitable inline configuration permitted by the manufacturer.

Maintenance and Care

Regular maintenance helps keep the MantaRay 6000 operating efficiently.

  • Clean the intake strainer: Remove leaves and debris that could restrict water flow.
  • Inspect the impeller: Disconnect the power before opening the impeller housing.
  • Check hoses and fittings: Look for leaks, blockages and damaged connections.
  • Monitor performance: Investigate unusual noise, vibration or reduced flow.
  • Inspect the power cable: Do not use the pump if the cable or plug is damaged.
  • Replace worn components: Use compatible replacement parts, including impeller set 25240i where applicable.
  • Follow the manual: Carry out cleaning and reassembly according to the manufacturer’s instructions.

Always disconnect the power before removing the pump from the water or carrying out maintenance.

What’s Included?

  • 1 × Pond One MantaRay 6000 Filter Pump
  • Attached 10-metre power cable
  • Pump strainer housing and outlet assembly

Hoses, hose clamps, filters and other installation accessories may need to be purchased separately. Confirm the exact package contents before installation.

Frequently Asked Questions

What is the maximum flow rate?

The MantaRay 6000 has a maximum rated flow rate of 6,400 litres per hour, equivalent to approximately 106.7 litres per minute.

How high can it pump water?

Its maximum rated head height is 3.3 metres. Actual water flow decreases as pumping height and plumbing resistance increase.

Can it run a pond filter?

Yes. It is designed to circulate water through compatible pond filtration systems. Check that your filter and connecting hoses are suitable for the pump’s flow rate.

Can it power a waterfall?

Yes. It can supply water to compatible waterfalls and cascades. The achievable flow depends on the waterfall height, hose diameter, pipe length and bends.

Is it suitable for koi ponds?

It can be used for compatible koi pond filtration and circulation systems. Choose a pump based on the pond’s volume, filter requirements and desired turnover rate.

How much electricity does it use?

At its rated 50W consumption, continuous operation uses approximately 1.2kWh per day or 36kWh over 30 days.

Is it suitable for saltwater?

The manufacturer lists the MantaRay range as suitable for freshwater and marine applications. Confirm compatibility with your specific installation and any connected equipment.

Ideal For

The Pond One MantaRay 6000 Filter Pump is ideal for garden ponds, koi ponds, pond filtration systems, waterfalls and water features that require high-volume water circulation and convenient maintenance.
